LIGHTWEIGHT CASTABLE

Product Introduction：

Our Lightweight Castable (SJH Series) is a premium-grade refractory material engineered for high efficiency and superior thermal insulation. Formulated with high-quality raw materials under strict quality control, this product offers a perfect balance of low bulk density and high compressive strength, making it ideal for modern industrial furnace and kiln linings.ModelMax Service Temp (℃)Bulk Density (g/cm3)Linear Change Rate (%)Compressive Strength (MPa)Thermal Conductivity (W/m·K)SJH-0.51150≥ 0.5-2.5 (1100℃×3h)≥ 1.5(350℃/900℃)0.15 (110℃) / 0.20 (800℃)SJH-1.01250≥ 1.0-1.0 (1100℃×3h)≥ 4.0/≥ 5.50.30 (110℃) / 0.40 (800℃)SJH-1.51300≥ 1.5-0.5 (1100℃×3h)≥ 15/≥ 200.60 (110℃) / 0.70 (800℃)SJH-1.81350≥ 1.8-0.5 (1100℃×3h)≥ 20/≥e 300.65 (110℃) / 0.75 (800℃)High Strength & Wear Resistance: Maintains excellent structural integrity under high-temperature environments.Superb Thermal Shock Resistance: Resists cracking or spalling during rapid temperature fluctuations.Energy Saving: Low thermal conductivity ensures minimal heat loss, significantly reducing energy costs.

联系我们

184-3798-7002

Product Introduction
Related Recommendations

PRODUCT DETAILS

Our Lightweight Castable (SJH Series) is a premium-grade refractory material engineered for high efficiency and superior thermal insulation. Formulated with high-quality raw materials under strict quality control, this product offers a perfect balance of low bulk density and high compressive strength, making it ideal for modern industrial furnace and kiln linings.

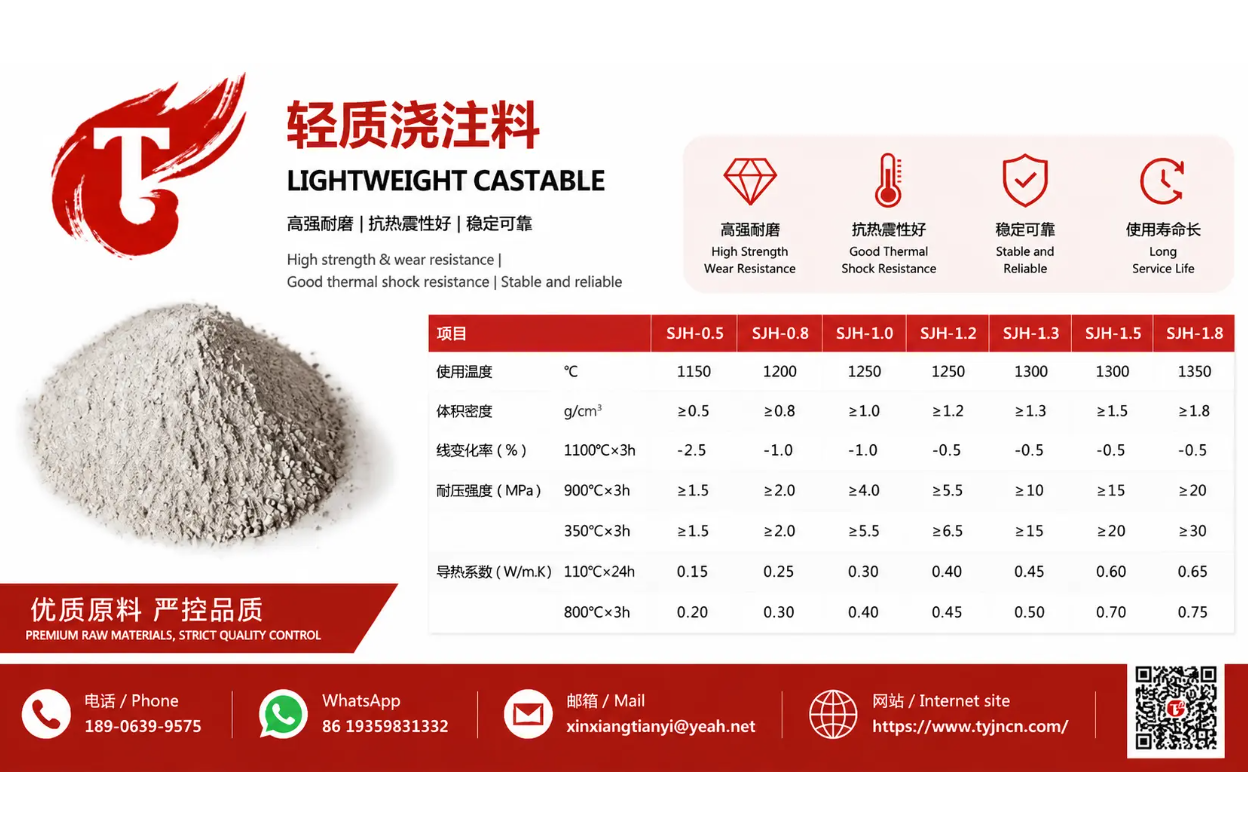

Model	Max Service Temp (℃)	Bulk Density (g/cm3)	Linear Change Rate (%)	Compressive Strength (MPa)	Thermal Conductivity (W/m·K)
SJH-0.5	1150	≥ 0.5	-2.5 (1100℃×3h)	$\ge 1.5$ (350℃/900℃)	0.15 (110℃) / 0.20 (800℃)
SJH-1.0	1250	≥ 1.0	-1.0 (1100℃×3h)	$\ge 4.0$ / $\ge 5.5$	0.30 (110℃) / 0.40 (800℃)
SJH-1.5	1300	≥ 1.5	-0.5 (1100℃×3h)	$\ge 15$ / $\ge 20$	0.60 (110℃) / 0.70 (800℃)
SJH-1.8	1350	≥ 1.8	-0.5 (1100℃×3h)	$\ge 20$ / $\ge 30$	0.65 (110℃) / 0.75 (800℃)

High Strength & Wear Resistance: Maintains excellent structural integrity under high-temperature environments.
Superb Thermal Shock Resistance: Resists cracking or spalling during rapid temperature fluctuations.
Energy Saving: Low thermal conductivity ensures minimal heat loss, significantly reducing energy costs.
