How to Select Refractory Materials for the Cooling Zone of a Lime Kiln? Common Damage Causes and Maintenance Methods

The cooling zone is an important thermal section of a lime kiln. After high-temperature calcination, hot lime enters the cooling zone and exchanges heat with cooling air.

Although the operating temperature of the cooling zone is generally lower than that of the firing zone, its refractory lining still experiences mechanical impact, material abrasion, airflow erosion and temperature fluctuations. Improper material selection or construction may result in wear, cracking, spalling and increased heat loss.

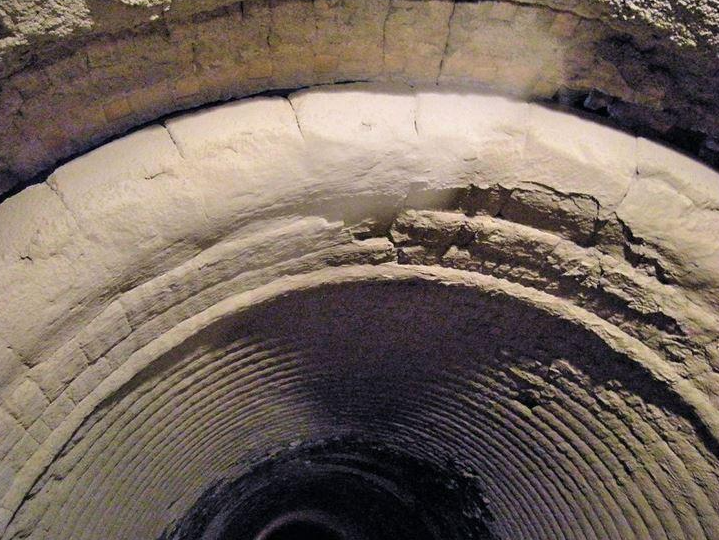

1. Why Does Refractory Damage Occur in the Cooling Zone?

Hot Lime Abrasion

Hot lime continuously moves and falls through the cooling zone. Direct impact and friction can gradually wear the refractory surface, especially in areas with concentrated material flow.

Temperature Fluctuations

Cooling air creates temperature differences inside the kiln. Start-up, shutdown, production changes and airflow adjustments can increase thermal fluctuations. Refractories with insufficient thermal shock resistance may develop cracks and spalling.

Dust Erosion

Lime dust carried by airflow can continuously erode the refractory lining. Areas with high airflow velocity or changes in airflow direction may experience more concentrated wear.

Localized Structural Wear

Discharge outlets, air channels, transition sections and changes in cross-section can experience stronger material or airflow erosion. These areas may require special refractory selection.

Construction and Structural Problems

Loose substrates, inadequate anchoring, excessive mixing water, insufficient vibration and improper dry-out can all contribute to premature cracking or spalling.

2. What Problems Can Damaged Refractories Cause?

Long-term refractory wear or spalling may result in:

• Reduced refractory thickness;

• Increased heat loss through the kiln shell;

• Higher local shell temperatures;

• Changes in heat exchange conditions;

• More frequent refractory repairs;

• Increased maintenance and shutdown requirements.

Regular inspection and timely maintenance can help prevent local damage from developing into larger problems.

3. How Should Refractory Materials Be Selected?

Consider Material Abrasion

Areas directly exposed to hot lime should prioritize wear resistance, impact resistance and mechanical strength.

Consider Thermal Shock Resistance

The cooling zone still experiences significant temperature gradients. Material selection should therefore consider not only service temperature but also thermal shock resistance and long-term stability.

Use Zone-Based Material Selection

Different sections may require different refractory solutions:

Direct material impact areas: wear resistance and impact resistance.

Near airflow channels: resistance to airflow erosion and temperature fluctuations.

Discharge areas: resistance to impact from falling hot lime.

Outer insulation areas: thermal insulation performance and structural stability.

Zone-based material selection is generally more suitable than using exactly the same material throughout the entire cooling zone.

4. What Refractory and Insulation Materials Can Be Used?

High-Alumina Refractory Castable

High-alumina castables provide good high-temperature performance and mechanical strength. Depending on the actual operating conditions, they can be used in selected areas of the cooling zone.

Wear-Resistant Castable

Wear-resistant castables can be considered for areas exposed to significant abrasion from lime lumps and dust. Wear resistance, thermal shock resistance and bonding with the existing lining should be evaluated.

Lightweight Insulation Bricks

Lightweight insulation bricks can be used as part of the insulation layer in areas that are not directly exposed to strong mechanical abrasion. They normally require protection from direct material impact.

Ceramic Fiber Products

Ceramic fiber blankets and modules are lightweight and relatively easy to install. Depending on temperature and structural conditions, they can be considered for selected insulation applications.

Refractory Mortar and High-Temperature Sealants

Refractory mortar and high-temperature sealing materials can be used for joints, gaps, connection areas and localized repairs. They should not, however, be regarded as substitutes for a complete refractory working lining.

5. Key Construction Considerations

Before installation, the existing lining and substrate should be inspected for loose materials, cracks, voids, damaged anchors and insulation loss.

During castable installation, the specified mixing water, mixing procedure, vibration and forming process should be strictly controlled.

For monolithic refractory linings, suitable anchoring should be designed according to the kiln structure while considering the different thermal expansion characteristics of metal and refractory materials.

After installation, proper curing and controlled dry-out are also important. Excessively rapid heating may cause internal moisture to vaporize quickly, resulting in cracking, swelling or localized damage.

6. How Should Damaged Refractories Be Maintained?

Maintenance should begin by identifying both the location and form of damage.

For surface wear, inspect material flow and refractory wear resistance.

For cracking and spalling, investigate thermal shock, material shrinkage, construction quality and structural constraints.

For abnormally high shell temperature, inspect the refractory and insulation layers for missing sections, cracks or voids.

Small areas of wear or localized spalling can usually be repaired during scheduled maintenance.

If the same location repeatedly fails, simply replacing the material with the same product may not solve the problem. The following factors should be evaluated together:

Damage location → Material movement → Temperature changes → Material properties → Construction method → Structural design

Conclusion

Although the cooling zone of a lime kiln generally operates at a lower temperature than the firing zone, its refractory lining is still exposed to hot lime, mechanical abrasion, cooling air, temperature fluctuations and equipment vibration.

Therefore, refractory selection should not be based solely on service temperature. Material movement, abrasion level, thermal shock conditions and kiln structure should also be considered.

High-alumina castables or wear-resistant castables may be considered for areas directly exposed to hot lime, while lightweight insulation bricks and ceramic fiber products can be used in suitable areas that are not directly exposed to severe abrasion.
